A1 Slope Introduction and Device Overview – Bushnell Golf

The Bushnell Golf A1 Slope Laser Rangefinder features patented Slope Technology, a rechargeable battery lasting about 50 hours (3,000 uses), and IPX6 weather resistance. Its compact design includes clear display indicators for aiming, battery level, distance, and slope. Charging from empty takes approximately four hours.

INTRODUCTION
Congratulations on purchasing your new A1 Slope Laser Rangefinder from Bushnell Golf. You are joining 98.6% of Tour players that trust their games to Bushnell Golf. The A1 Slope is packed with features including Bushnell Patented Slope Technology, Rechargeable battery, and IPX6. The small lightweight design makes this Laser Rangefinder a perfect companion for all golfers on the course.

WARNING: AS WITH ANY LASER DEVICE, IT IS NOT RECOMMENDED TO DIRECTLY VIEW THE EMISSIONS FOR LONG PERIODS WITH MAGNIFIED LENSES.

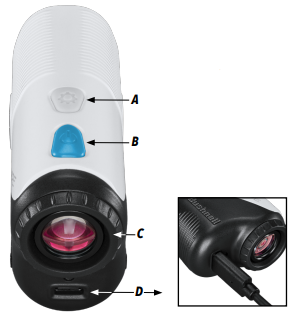

PARTS GUIDE
A. Mode Button
B. Power/Fire Button
C. Eyepiece Diopter Dial
D. Charging Port

This image references the front view of the Bushnell A1-Slope rangefinder with four labeled arrows identifying key controls and features. Arrow A points to the Mode button near the top of the device. Arrow B points to the blue Power/Fire button below it. Arrow C points to the eyepiece diopter dial surrounding the lens. Arrow D points to the USB-C charging port at the bottom. An inset image shows the A1-Slope connected to a USB-C charging cable.

This image references a gray Bushnell A1-Slope carrying case with blue trim shown beside a black USB-C charging cable. Text indicates the package includes a bite-enabled silicone sleeve, carrying case, USB-C charging cord, and lens cleaning cloth.

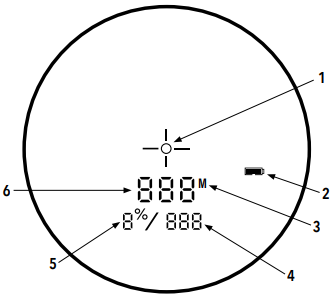

DISPLAY INDICATORS
The A1 Slope display incorporates the following indicators:
1. Aiming Circle (surrounding crosshairs indicate laser transmission)
2. Battery Level
3. Distance Units (Yards/Meters)
4. “Play As” Distance, based on Slope
5. Slope (% grade)
6. Line of Sight Distance / Primary Display

This image references the circular OLED display of the Bushnell A1-Slope rangefinder showing six labeled indicators. Arrow 1 points to the central aiming circle with crosshairs, which indicate laser transmission. Arrow 2 points to the battery level icon on the right side. Arrow 3 points to the distance unit indicator, showing yards or meters. Arrow 4 points to the “Play As” distance display adjusted for slope. Arrow 5 points to the slope percentage grade indicator below the main distance. Arrow 6 points to the Line of Sight distance displayed in the center of the screen.

BATTERY LEVEL INDICATOR
The Battery Indicator shows the remaining power level:
• Full charge:

• Approx. 2/3 battery life remaining:

• Approx. 1/3 battery Life remaining:

• Battery Indicator Blinks - Unit needs recharging.

FAQ

Q: How long does it take to fully charge?

A: It will take approximately four hours to charge the A1-Slope from 0 to 100%.

Q: How long will the battery last?

A: A fully charged battery should last for around 50 hours, or about 3,000 target acquisitions.
