The Quick Settings screen provides fast access to core Launch Pro device controls and status, including connectivity, display and sound preferences, region/time settings, and registration information. It outlines what each Quick Settings option is used for so customers can confirm setup, make basic adjustments, and troubleshoot common configuration issues directly from the device.
Accessing Quick Settings

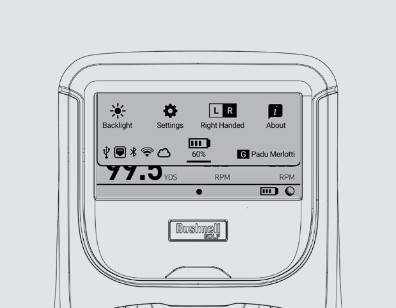

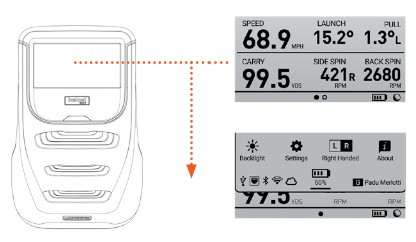

On your Launch Pro touch display, swipe down to access the QUICK SETTINGS screen. On
the QUICK SETTINGS screen, you can access the BACKLIGHT, SETTINGS, LEFT/RIGHT-
HANDED modes, ABOUT, and you can check the battery life.
Quick Settings Explained
Backlight: Turn on/off the backlight.
Settings: Turn on/off tracking mode, access target alignment, check firmware,
choose units of measurement, access Wi-Fi, change the display,
access diagnostics, access shot saver.
Left/Right Handed: Toggle between left and right handed modes.
About: Access account information, version, patents, system information,
web dashboard, and counters.
Battery: Check battery life.
FAQ
Q: What if the backlight is not working?
A: If you have followed the direction to turn on/off the backlight and the light will not activate its recommended to contact support to review next steps.
Q: My device is not collecting ball data?
A: Be sure your device has the correct handedness selected and try to collect ball data again.
Q: What username is the device registered to?
A: Check the About section to see all account information.
